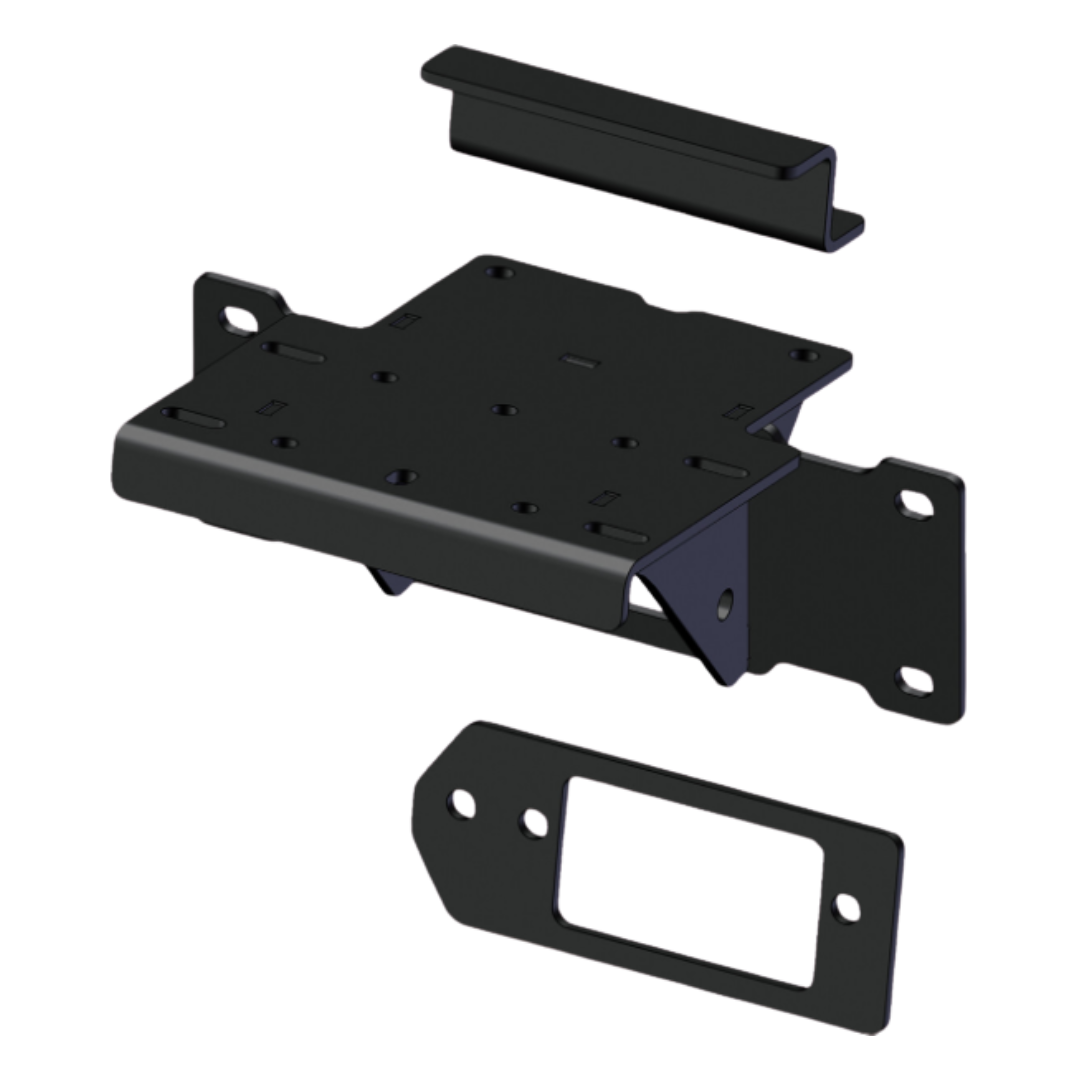

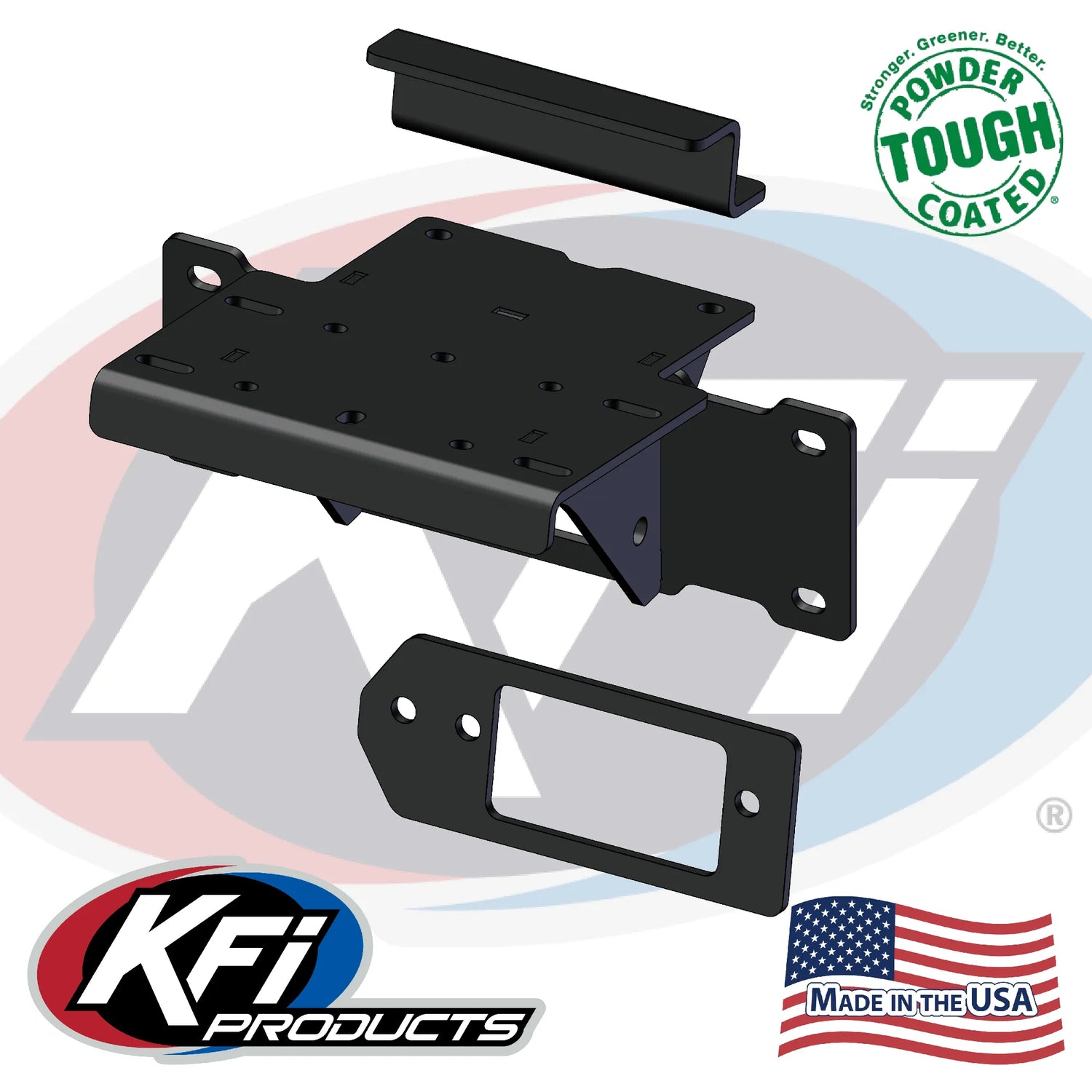

KFI Kawasaki Ridge Winch Mount

KFI Winch Mount for Kawasaki Ridge & Ridge XR (2024–2025)

Equip your Kawasaki Ridge or Ridge XR with the rugged KFI Winch Mount—engineered for superior strength, precision fitment, and reliable performance. Made in the USA from heavy-duty 3/16” steel and finished with a black textured powder coat, this mount is built to last through the toughest work or trail conditions.

Key Features & Benefits

• Made in the USA: 100% American-built for quality, precision, and durability.
• Heavy-Duty Construction: 3/16” steel plate provides unmatched strength and stability under load.
• Powder-Coated Finish: Bead-blasted before coating for maximum adhesion and corrosion resistance.
• Winch Compatibility: Designed to fit most 2-hole and 4-hole standard or wide bolt-pattern winches.
• Easy Installation: Includes full mounting hardware and step-by-step instructions.
• Perfect Fitment: Precision-cut to match factory frame points for a clean, secure installation.

Fitment

• Kawasaki Ridge (Base / HVAC / Limited HVAC / Ranch Edition): 2024–2025
• Kawasaki Ridge XR (Base / HVAC / Deluxe): 2024–2025

Compatible Winches

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45-R2w / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx
• WARN (requires standard fairlead bracket #4505-1086): VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / AXON 35 / AXON 35-S / AXON 45RC
• WARN (requires wide fairlead bracket #4505-1073): VRX 45 / VRX 45-S / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
• WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs
• WARN: Vantage 4000 lbs / ProVantage 4500 lbs

• 4-hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
• 4-hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
• 2-hole (3.10" with rollers that are 4.875" bolt pattern)

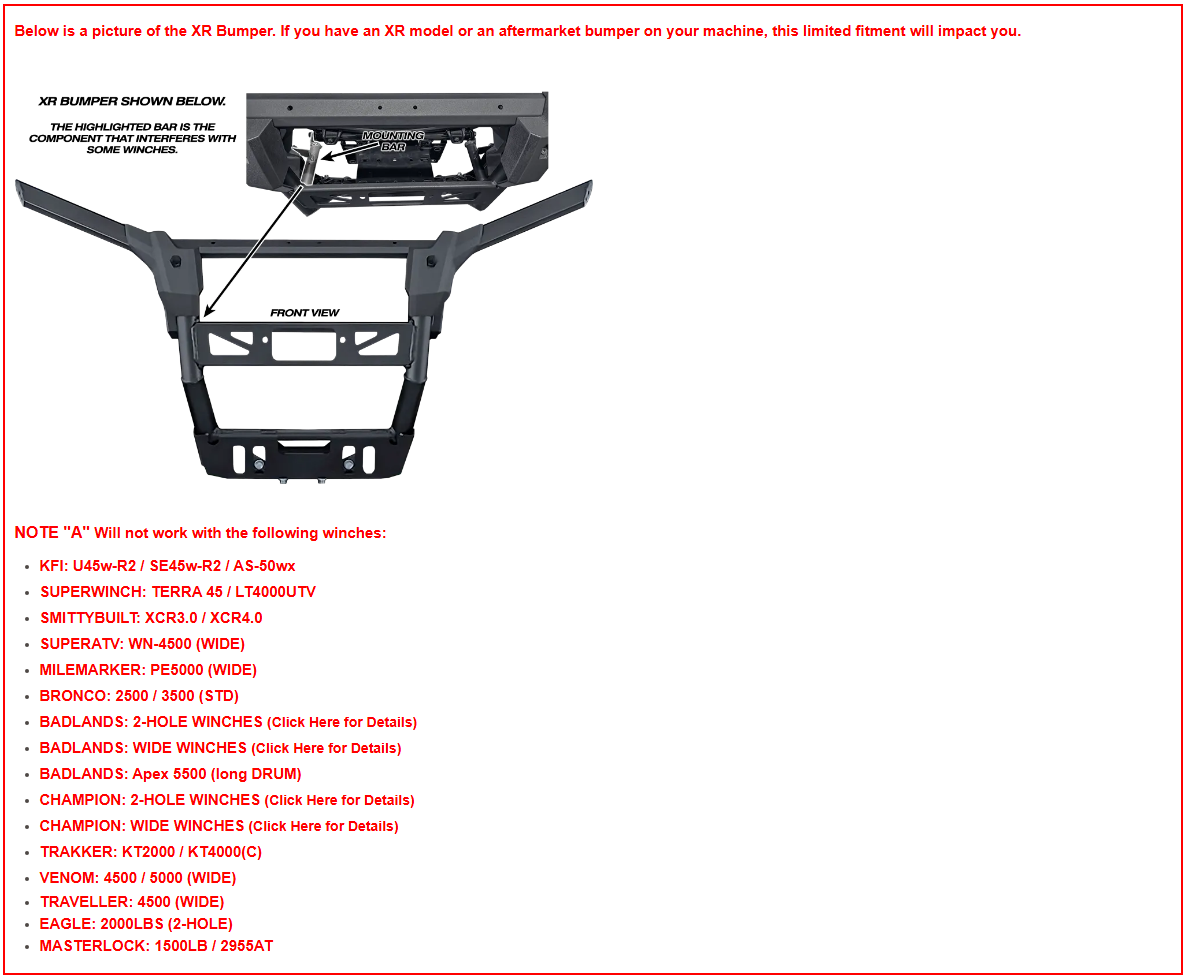

• KFI: U45w-R2 / SE45w-R2 / AS-50wx
• SUPERWINCH: TERRA 45 / LT4000UTV
• SMITTYBUILT: XCR3.0 / XCR4.0
• SUPERATV: WN-4500 / WN-6000 / 4500-W-N / WIN 00-001 / WIN 00-012 wide
• MILEMARKER: PE5000 wide
• BRONCO: 2500 / 3500 STD
• BADLANDS: 2-hole, wide, or Apex 550 winches
• CHAMPION: 2-hole or wide winches
• TRAKKER: KT2000 / KT4000(C)
• VENOM: 4500 / 5000 wide
• TRAVELLER: 4500 wide
• EAGLE: 2-hole 2000LBS
• MASTERLOCK: 1500LB / 2955AT

Technical Highlights

• Constructed of 3/16” American steel
• Powder-coated black textured finish
• Bead-blasted prep for superior coating adhesion
• Includes all mounting hardware and instructions
• Roller fairlead and winch not included

The KFI Kawasaki Ridge Winch Mount provides the reliability, precision, and strength you need to get the job done. Whether you’re working the farm, plowing snow, or exploring the backcountry, KFI’s USA-made mounts deliver unmatched quality and performance—ready for whatever your Ridge can handle.
