Can-Am Defender HD11 Snow Plow KFI Swift-Latch with Pro-S Blade Standard With Actuator

Can-Am Defender HD11 KFI Swift-Latch Snow Plow Kit – 72" Pro-S Steel Blade with Hydraulic Actuator

Take on demanding winter conditions with the KFI Swift-Latch Snow Plow System for the Can-Am Defender HD11. Designed and manufactured in the USA, this heavy-duty plow system features KFI’s Swift-Latch™ front mount, rugged 2.0 push tubes, a 72" Pro-S steel blade, and a hydraulic angle actuator for effortless blade control from the driver’s seat.

Key Features & Benefits

• 100% Made in the USA: Designed, manufactured, and tested for professional-grade performance.
• Swift-Latch™ Front Mount: Allows fast attachment and removal with the plow mount staying off the machine when not in use.
• Heavy-Duty Construction: 3/16" Grade 50 steel plate with 1/4" steel mounting tabs for maximum strength.
• Superior Finish Prep: Metal bead blasted before powder coating for enhanced corrosion resistance.
• High-Lift Design: Over 30" of lift height with 2.5" added length for improved clearance.
• Adjustable Blade Angle: Three blade positions (0°, 12.5°, 25°) for precise snow control.

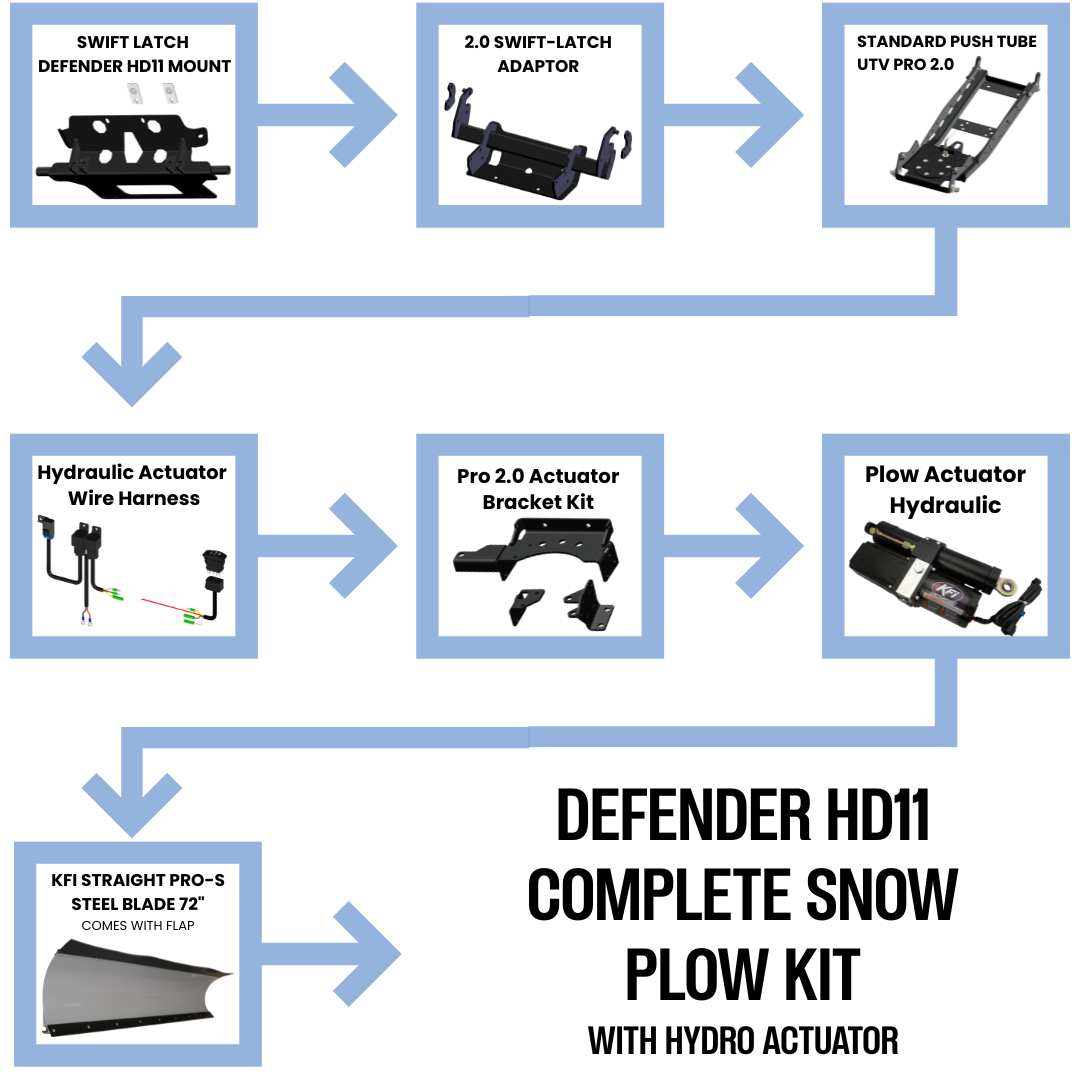

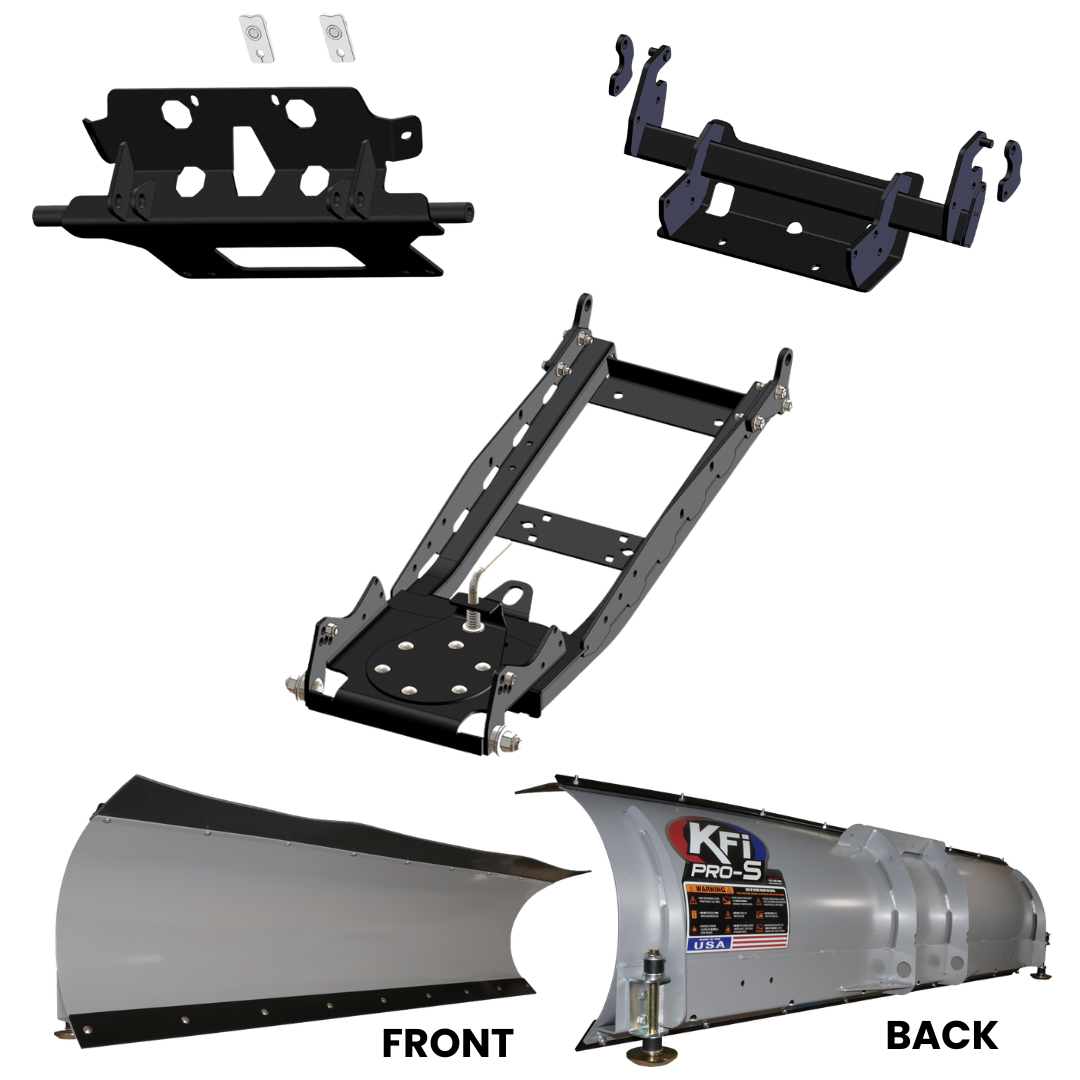

• Complete Kit: Includes all mounting hardware and detailed installation instructions.
• 2-Year KFI Warranty: Backed by KFI’s industry-leading quality assurance.

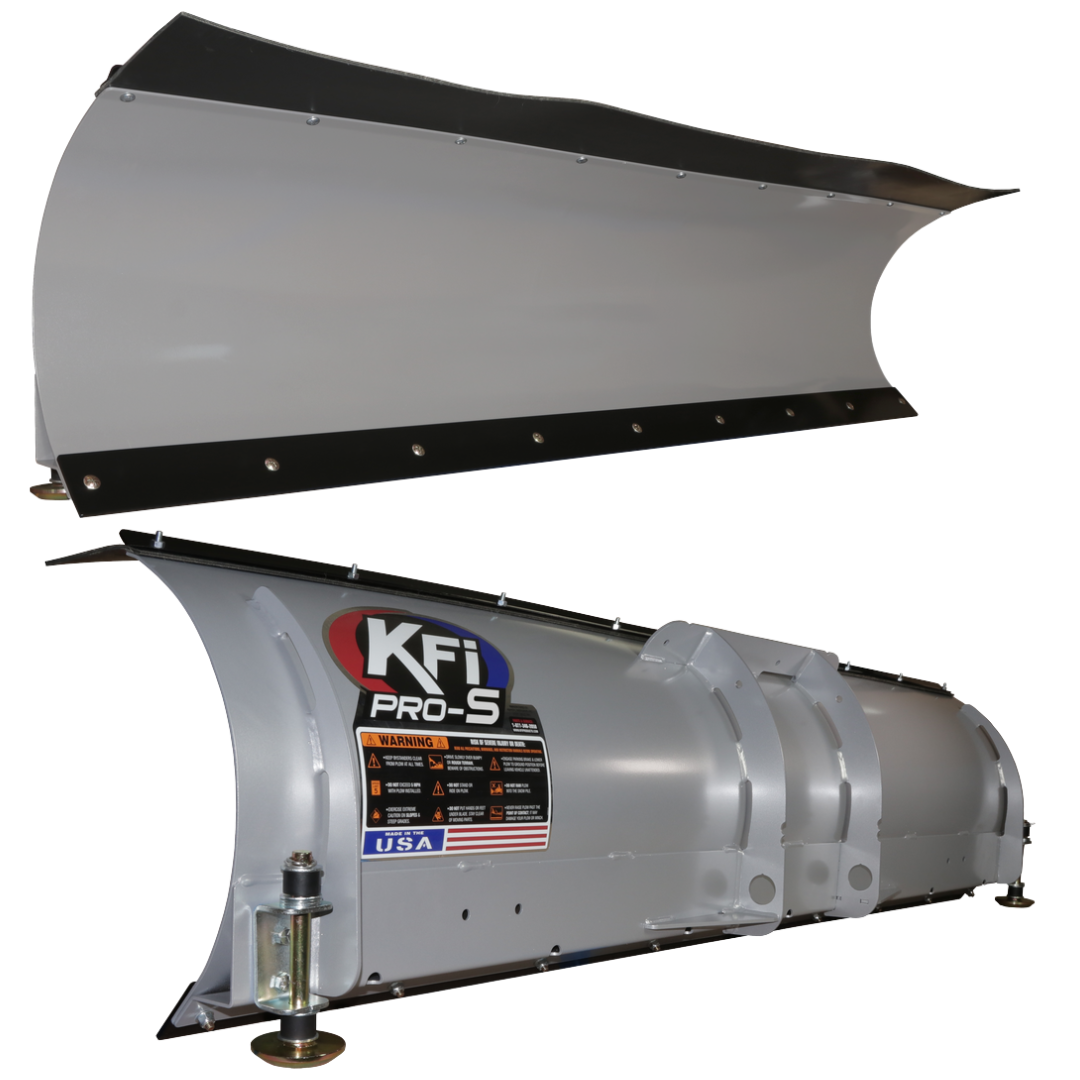

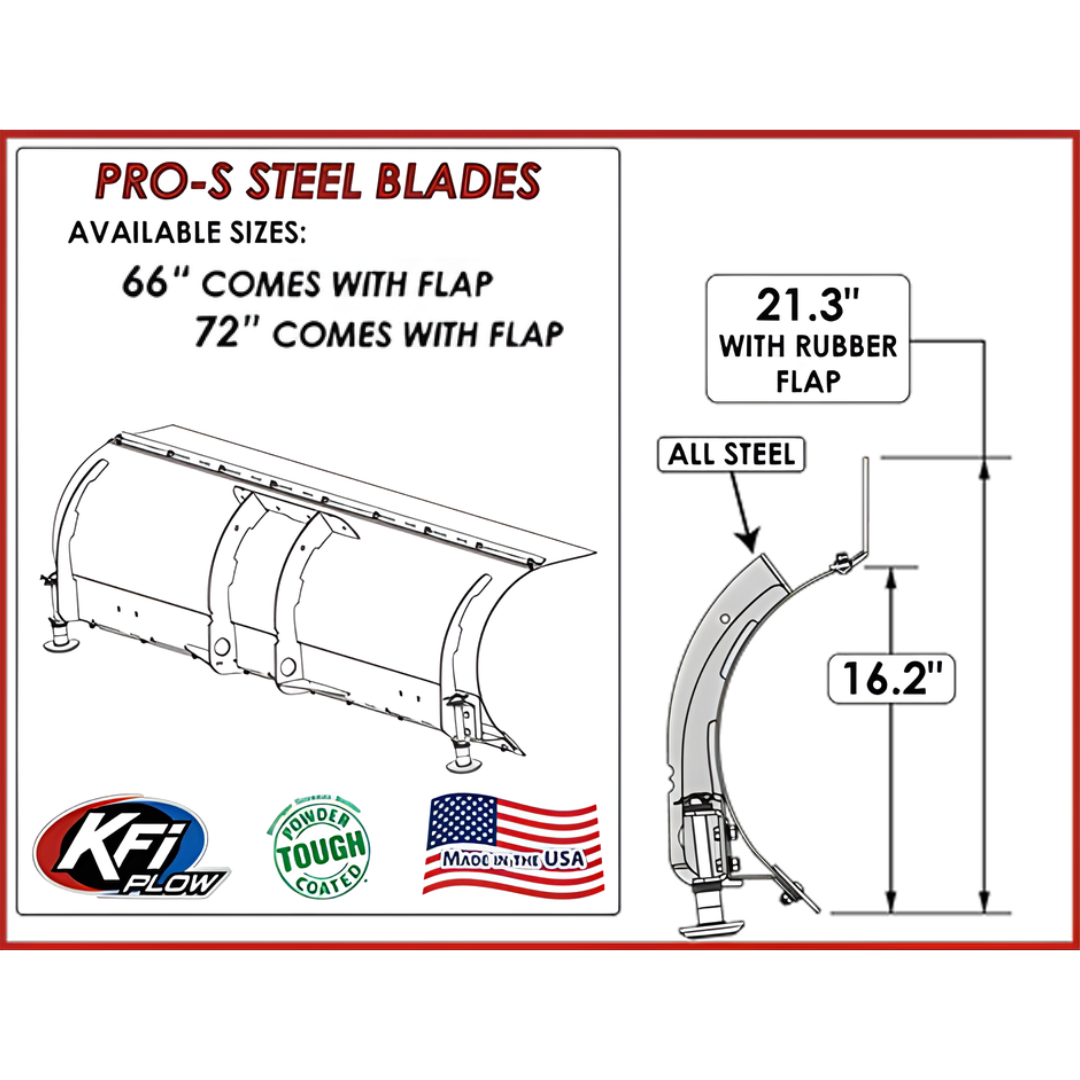

72" Pro-S Steel Blade Specifications

• Constructed from 11-gauge steel with 3/16" Grade 50 reinforcement ribs
• 16" vertical blade height (approximately 21" with rubber snow flap)
• Pushes snow straight or angles up to 25° left or right
• Fully adjustable 3" Grade 50 steel skid plates
• Two-sided 3/16" x 3" Grade 50 steel wear bar with Grade 8 hardware
• 7" high 2-ply rubber snow flap included
• Metal bead blasted and powder-coated Metallic Silver for long-lasting protection

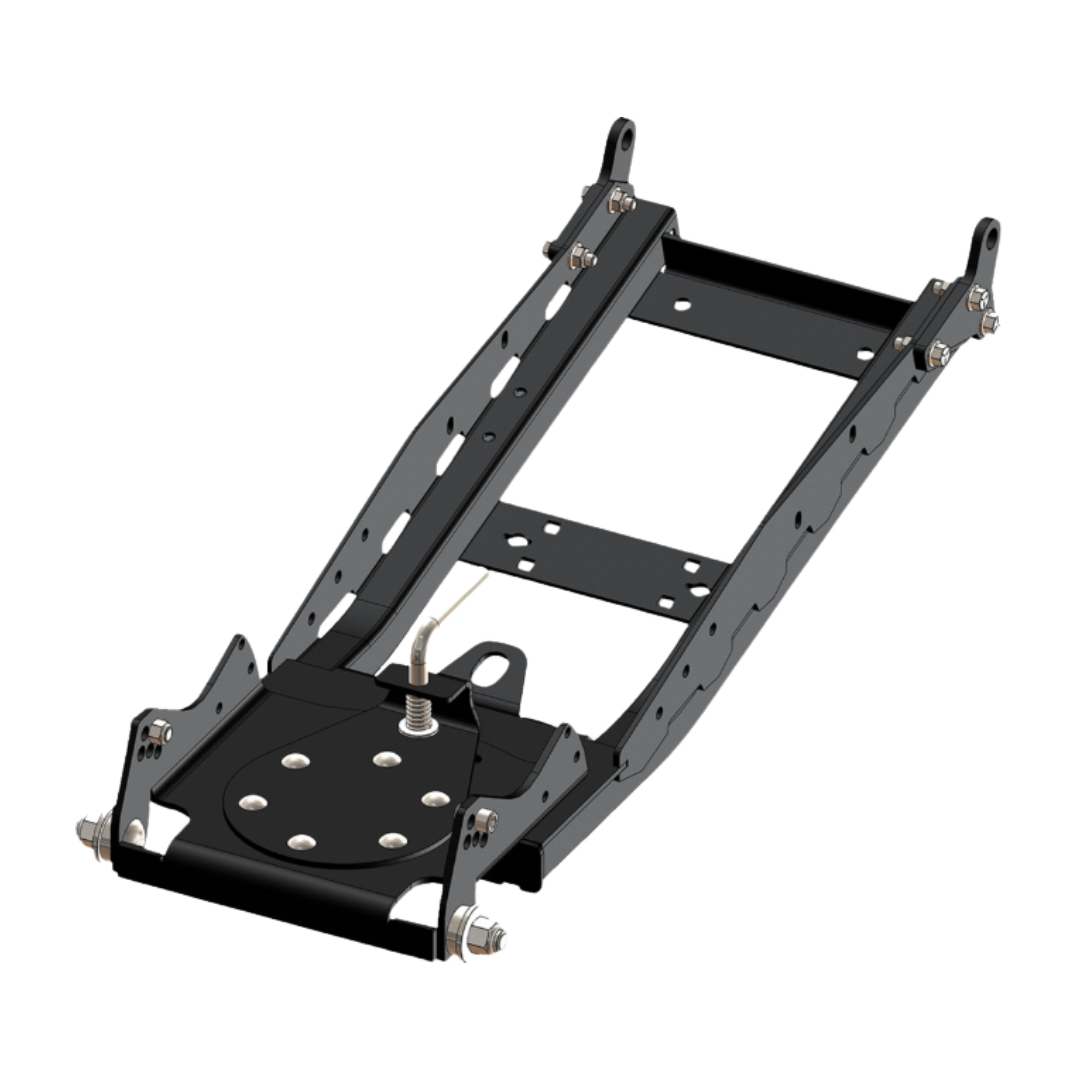

2.0 Push Tubes – Standard Highlights

• Heavy-duty 1-1/2" 12-gauge square steel tubing
• Front mount design provides over 30" of lift height
• 6" POM injection-molded rotator bushing for smooth blade movement
• Multi-position plow lift bracket with six blade pitch adjustments
• Easy-pull pin system for fast blade angle changes
• Powder-coated black for durability and corrosion resistance

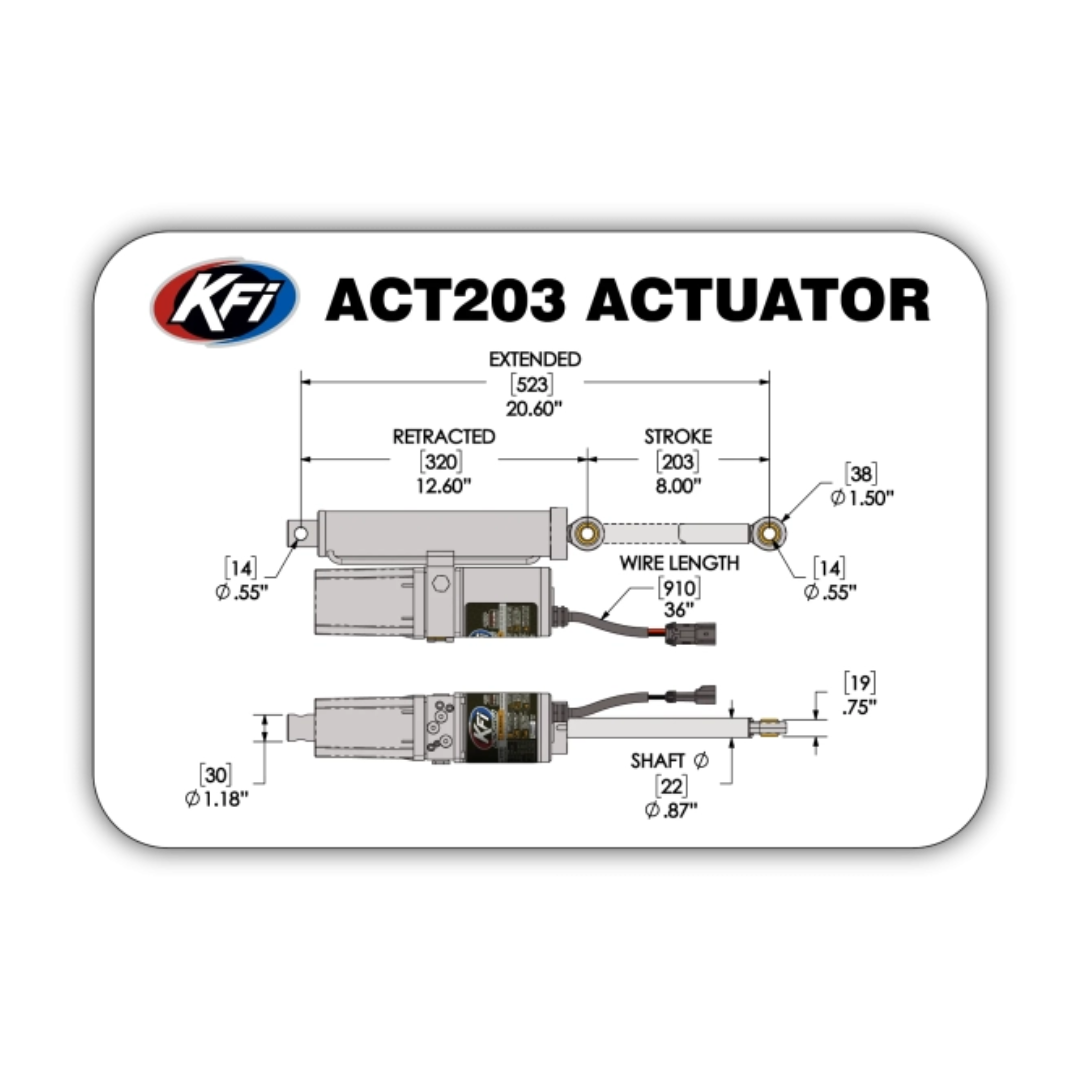

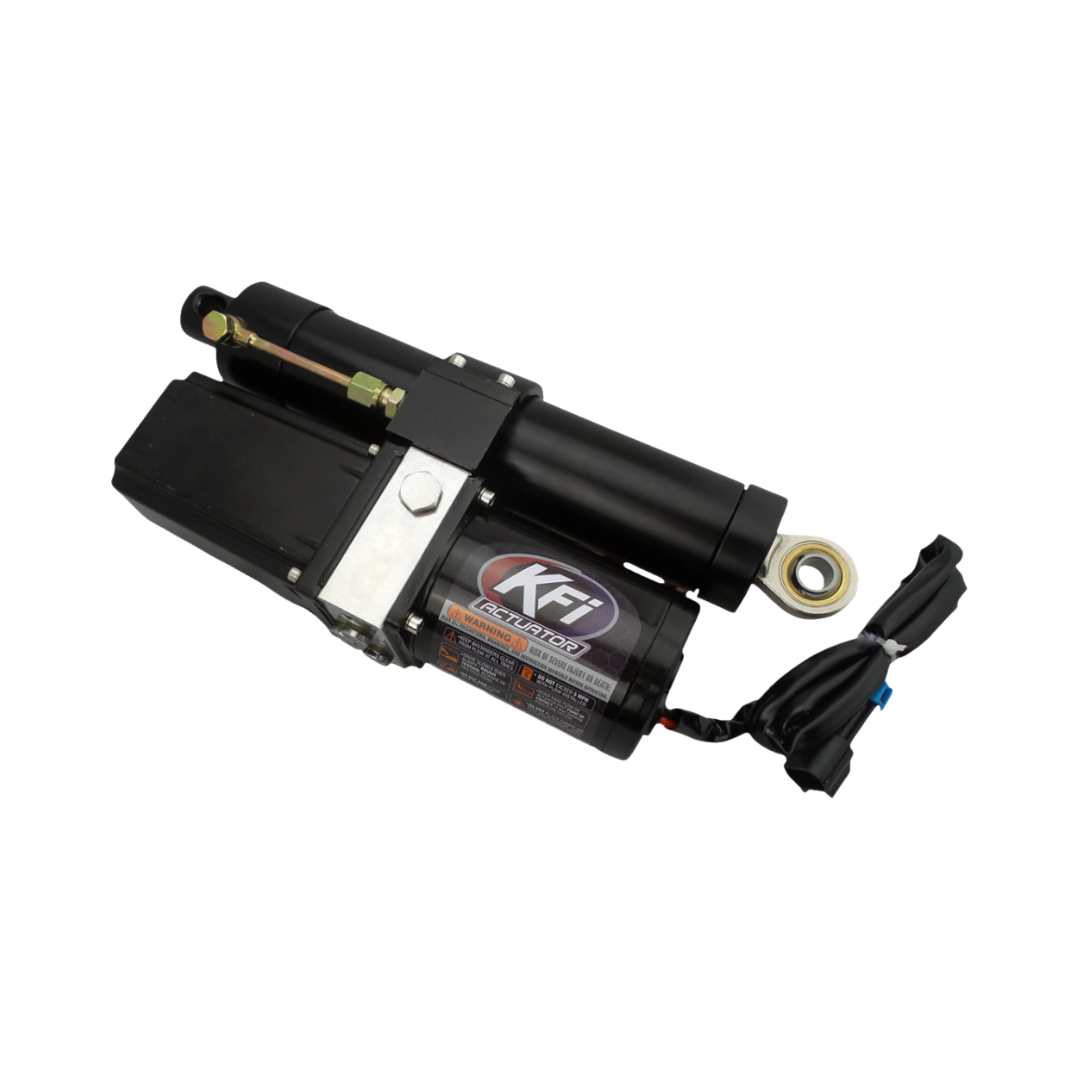

Hydraulic Angle System

• KFI electric 12V over-hydraulic cylinder
• Metri-Pack 280 2-pin series male connector

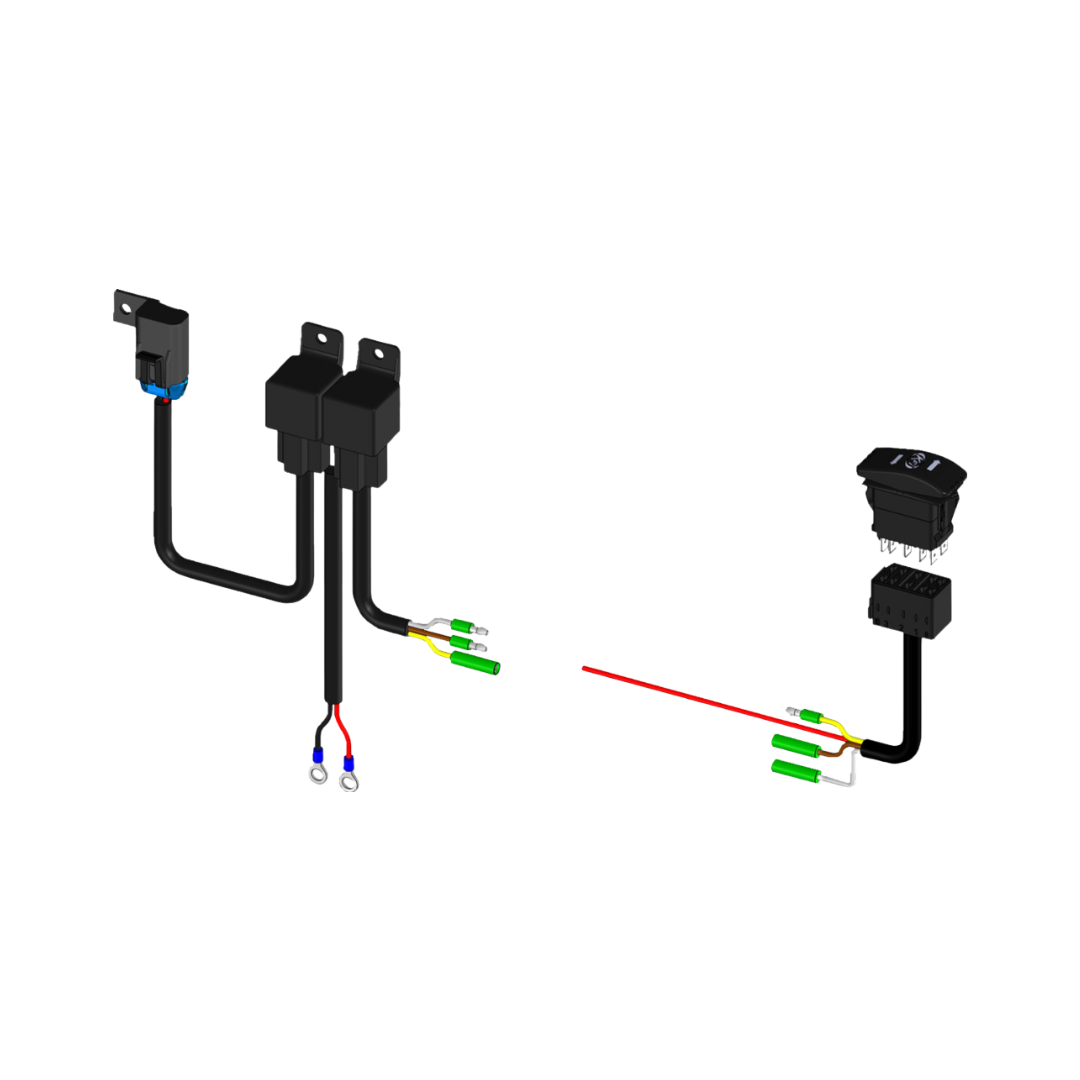

• Complete wiring harness with Carling Technologies two-way dash rocker switch

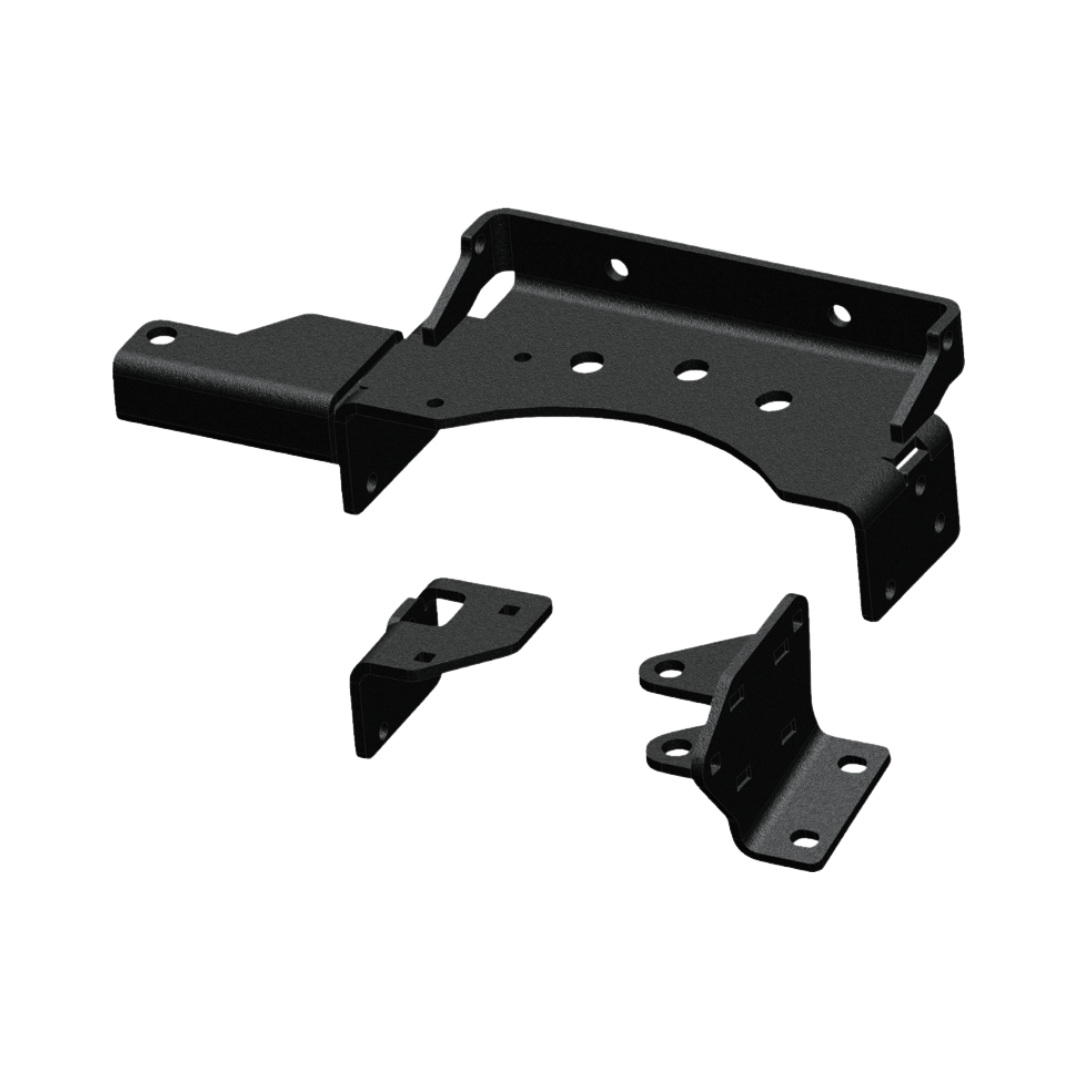

• Pro 2.0 actuator bracket kit rotates blade up to 25° in both directions
• Specifically designed for use with KFI UTV push tubes
• Requires drilling for installation
• 1-year KFI limited warranty on actuator components

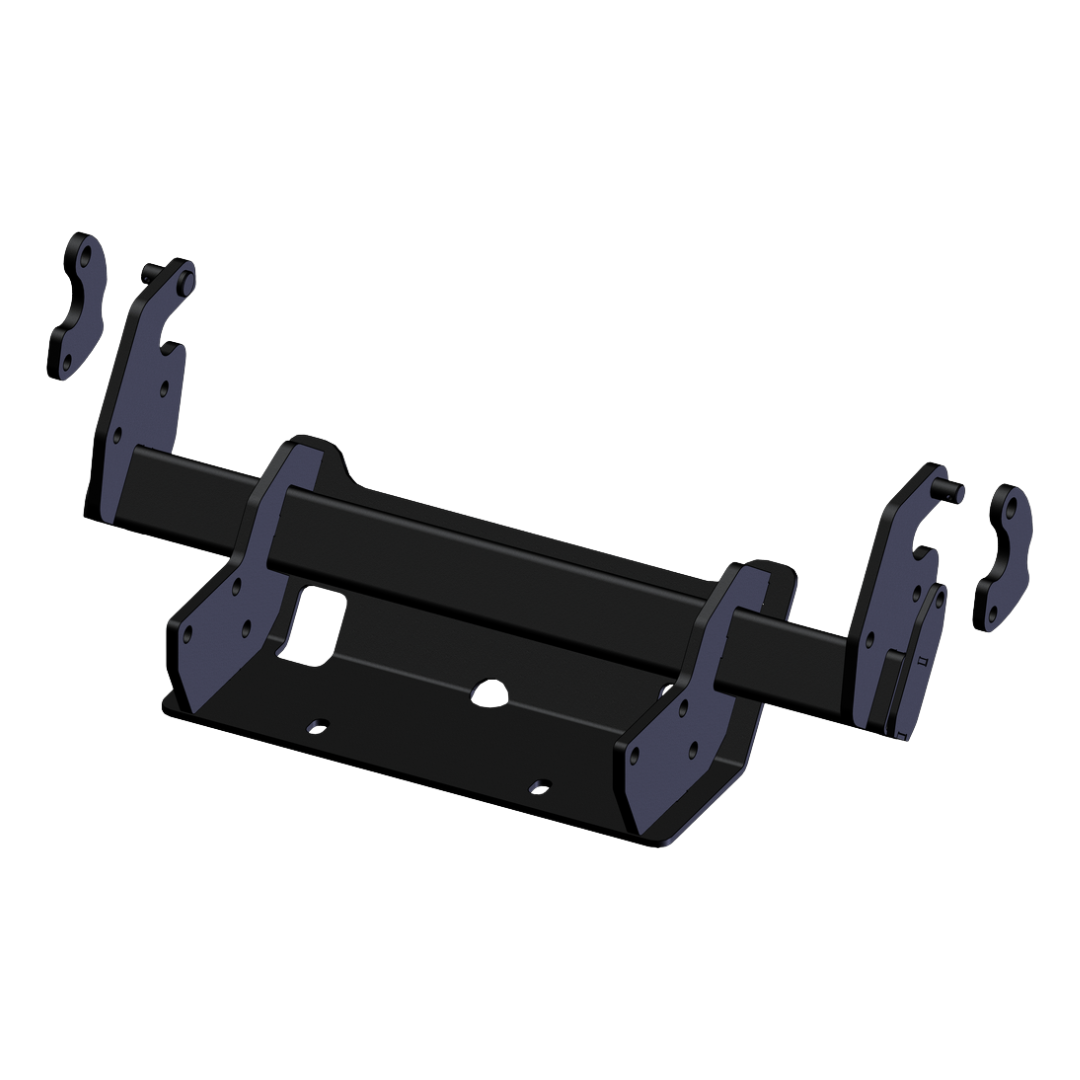

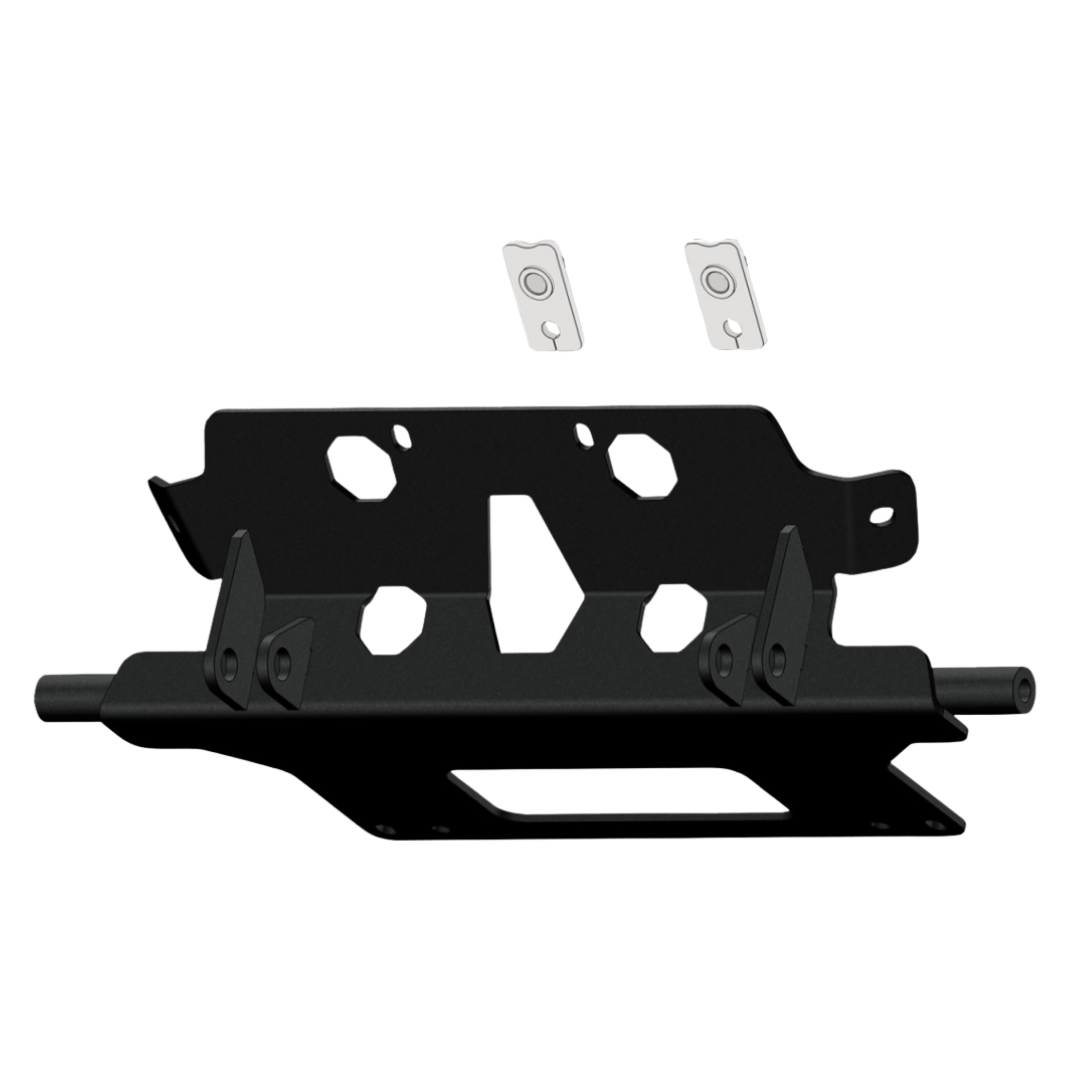

Swift-Latch™ Adaptor Details

• Permanently mounts to KFI push tubes (PN 106300)
• Keeps plow mount off the machine during non-winter seasons
• Ensures proper blade geometry and mounting alignment
• Designed for 14" (+/-1") Swift-Latch™ bar height

Technical Highlights

• Blade Width: 72 inches
• Blade Height: 16" (21" with rubber flap)
• Blade Material: 11-gauge Grade 50 steel
• Mount Type: Swift-Latch™ front lower mount
• Finish: Powder-coated Metallic Silver
• Warranty: 2-Year KFI manufacturer warranty (1-year on hydraulic actuator)

Fitment

• Can-Am Defender HD11 (All Models): 2022–2026

The KFI Swift-Latch Snow Plow Kit with 72" Pro-S Steel Blade and Hydraulic Actuator delivers unmatched strength, convenience, and control for the Can-Am Defender HD11. Whether clearing driveways, job sites, or commercial properties, this system is built to perform reliably season after season.
