Arctic Cat Wildcat XX Adapt Clutch Kit

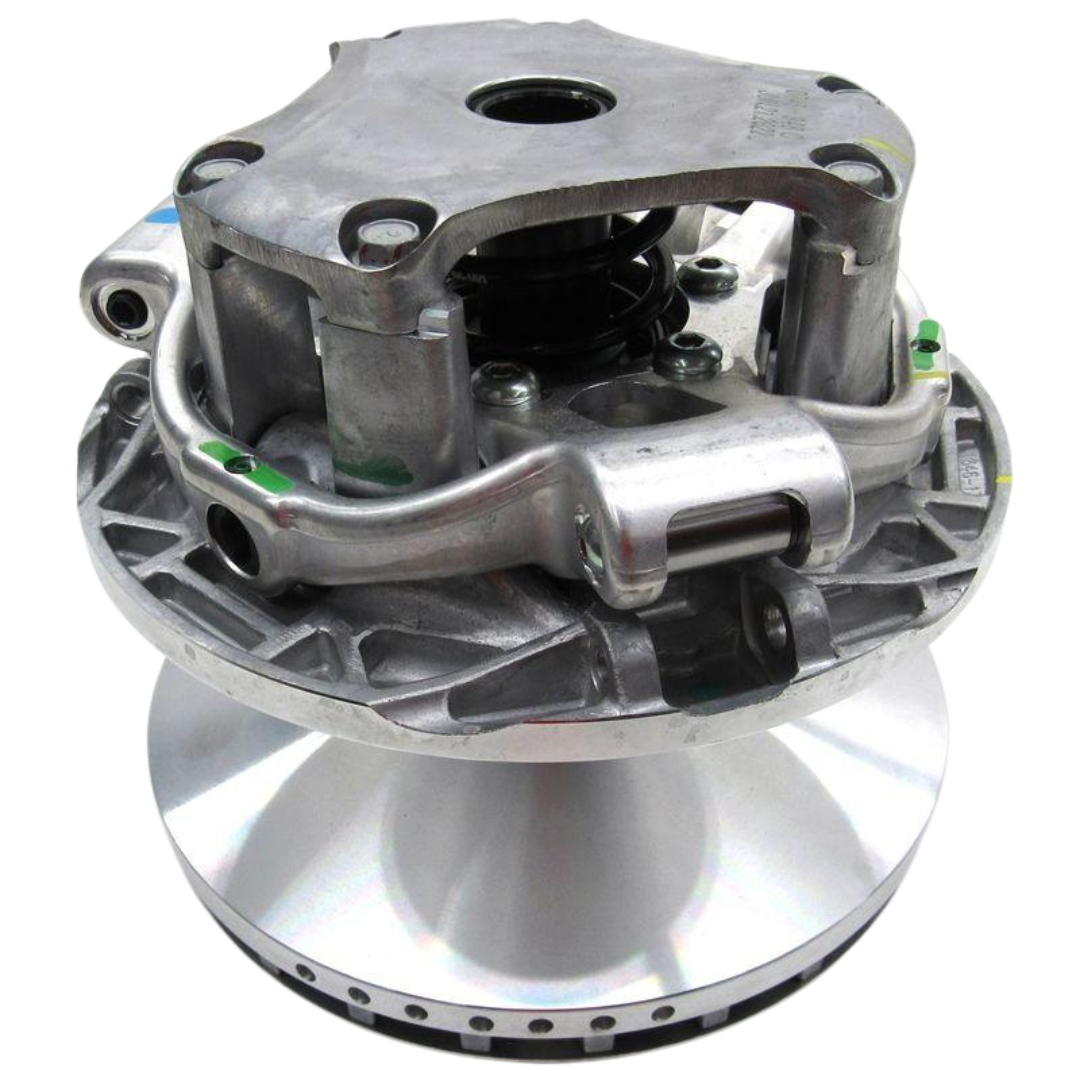

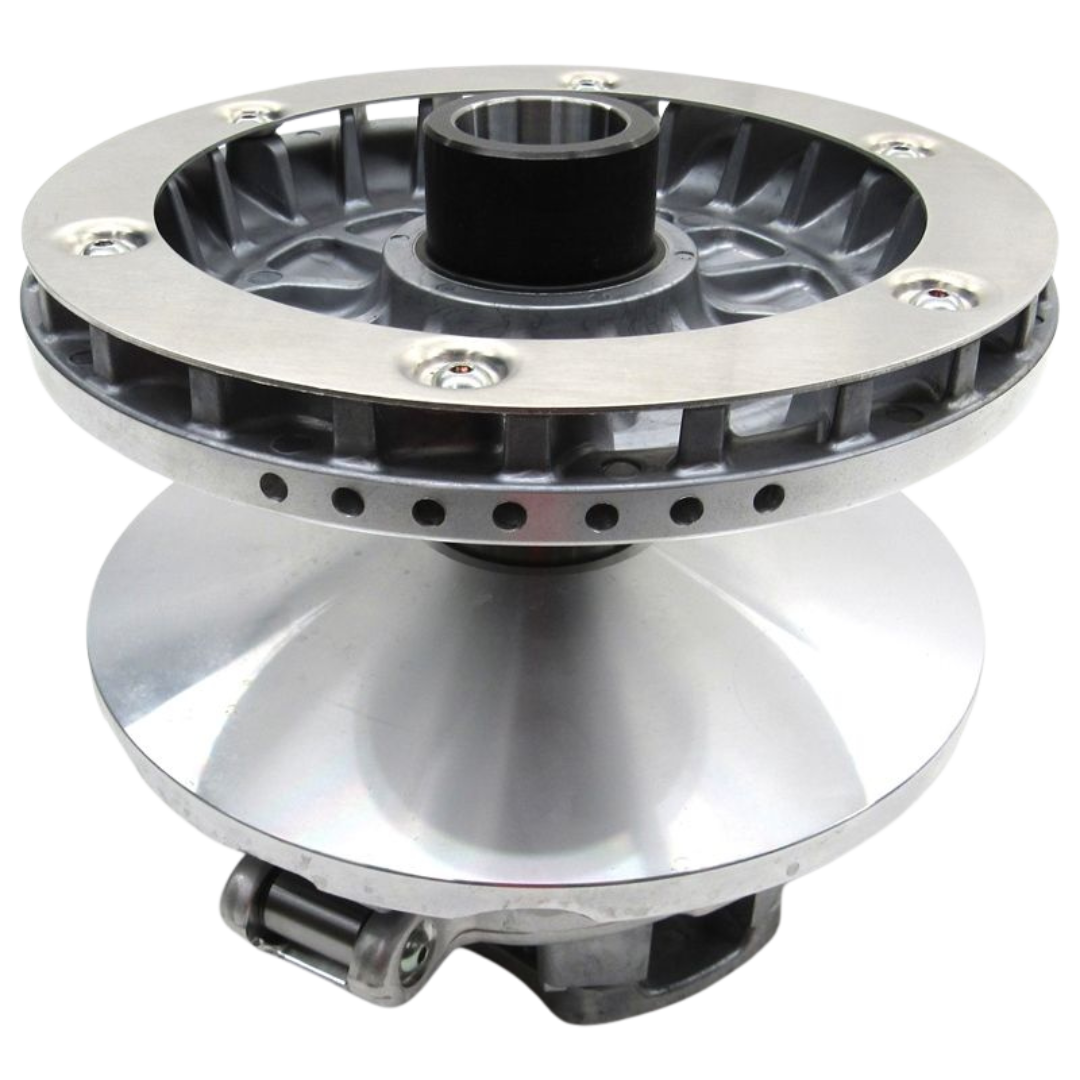

Arctic Cat Wildcat XX ADAPT Clutch Complete Kit – Upgrade to the New 2022 LTD+ Drive System

Boost your Wildcat XX performance with the latest ADAPT Drive Clutch system from Arctic Cat. This 2022+ upgrade replaces the TEAM clutch and delivers smoother engagement, more consistent performance, and longer belt life for every ride.

Key Benefits of the ADAPT Drive Clutch

• Consistent Belt Tension: Maintains optimal tension across the RPM range for improved throttle response and reduced belt wear.
• Alloy Roller Design: Replaces traditional rubber puck for smoother operation and better longevity.
• 8-Inch Diameter: Built with a 33mm taper and idler bearing for efficient power transfer.
• Lightweight Build: Weighs 1 lb less than the 2021 TEAM clutch, reducing overall drivetrain load.
• Reduced Inertia: 5% decrease in rotating mass for quicker acceleration and smoother clutch engagement.
• Compact Profile: 25mm narrower design for a 14.1% reduction in overall width.

Installation Notes

• Always replace the drive belt when installing a new clutch to prevent premature failure.
• Includes pre-installed 85/225 lb spring (PN 1646-009).

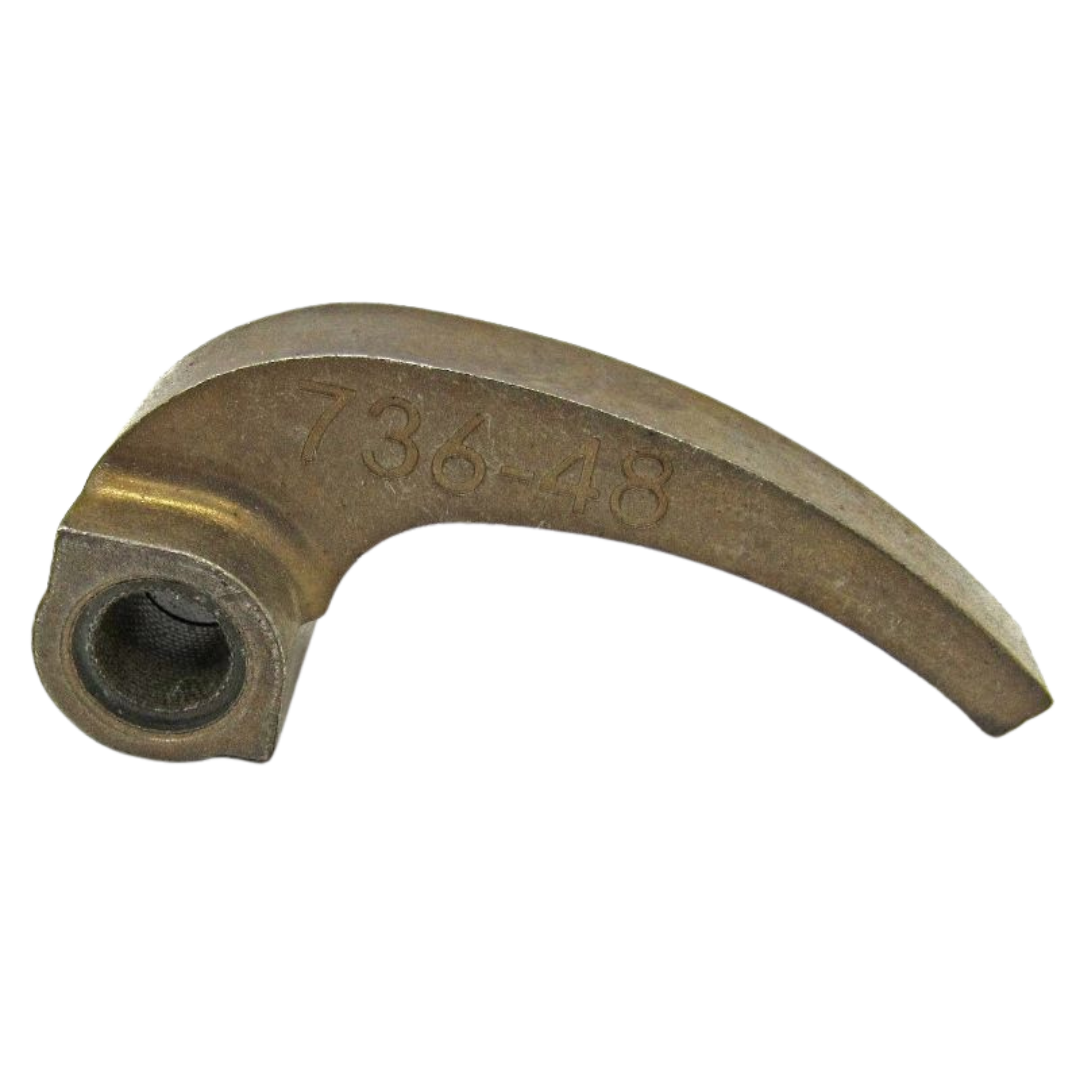

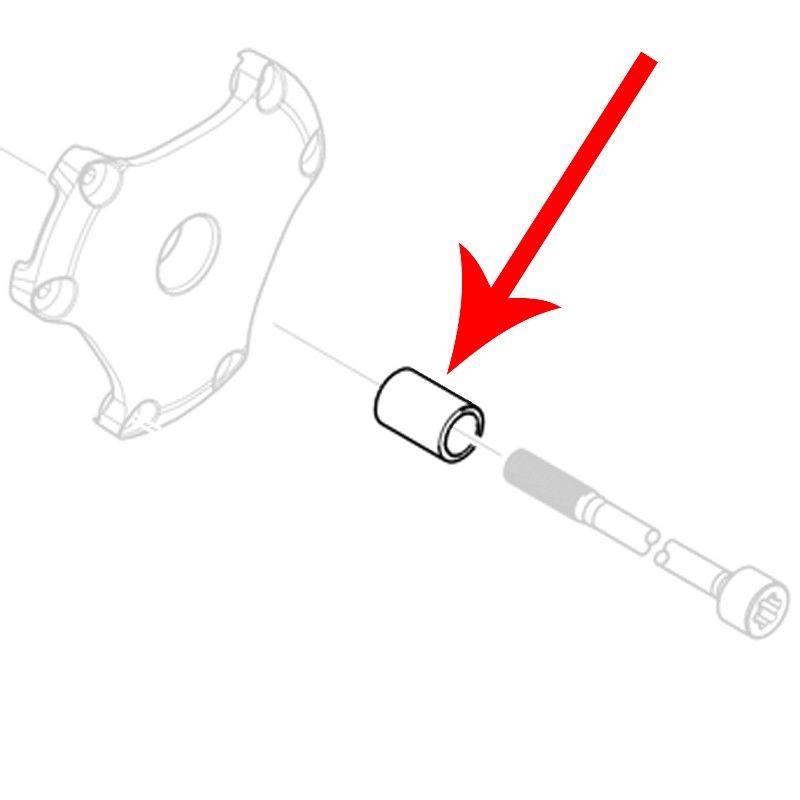

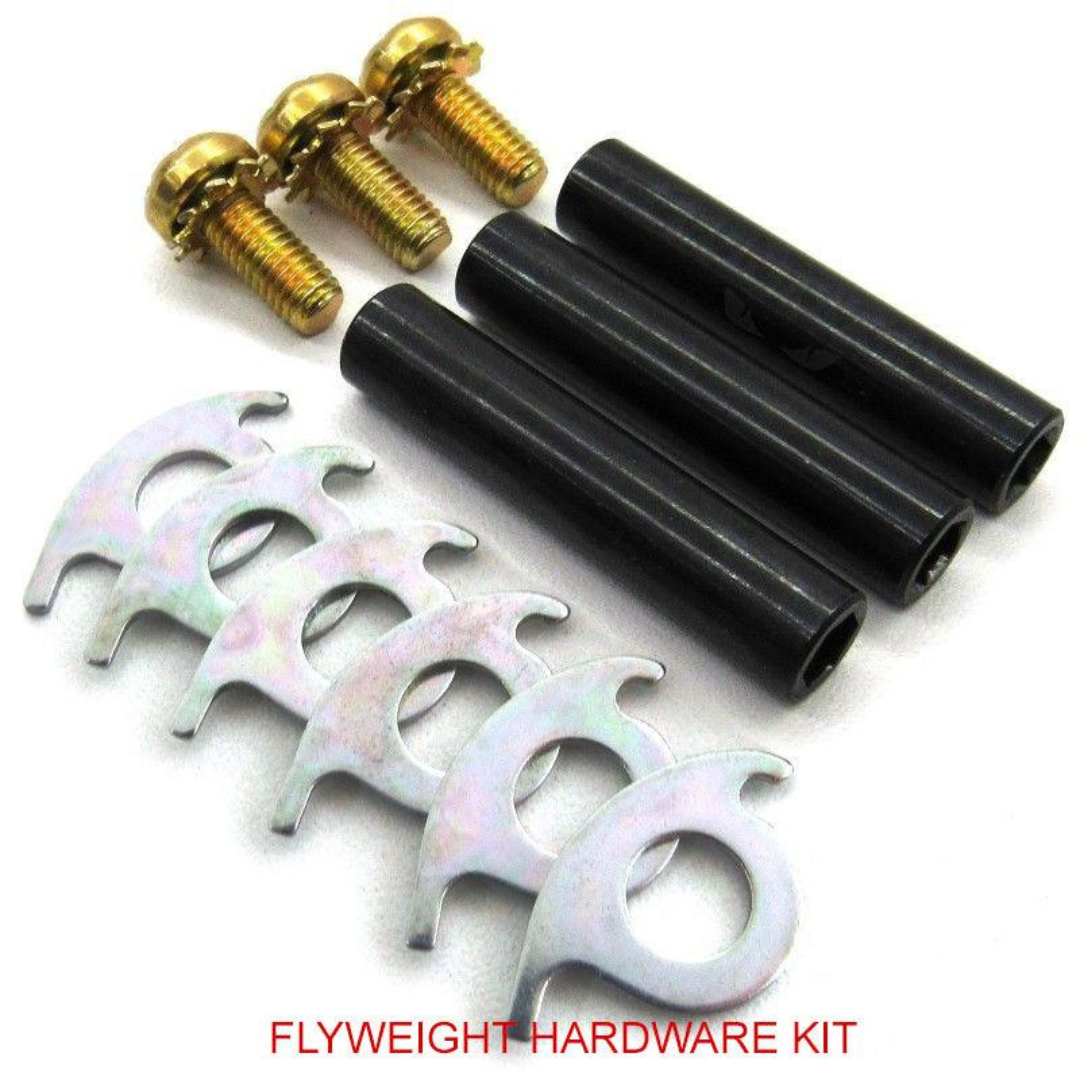

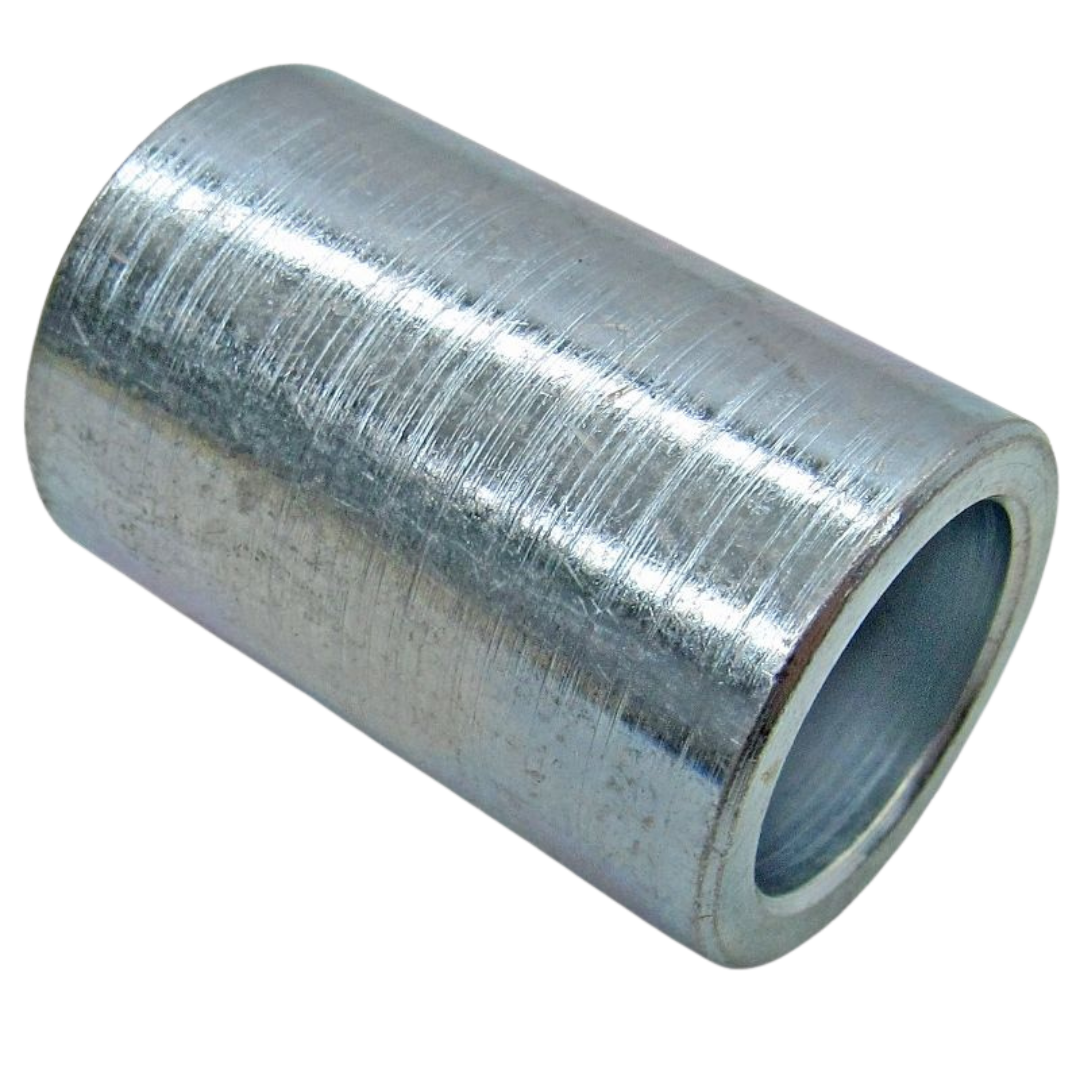

• Comes with arm pin kit (PN 8639-454) and spacer (PN 2623-325).
• Factory weights (PN 0823-788) for 2022+ models.
• For turbo applications, contact us about Speedwerx weights and adjustment kits.
• Requires clutch puller (PN 920058) and drive belt (PN 0823-529) – both sold separately.

Important Note

• This kit includes the primary drive clutch only.
• Secondary/driven clutch is not included.

Upgrade your Wildcat XX with the ADAPT Drive Clutch and experience smoother shifting, reduced belt wear, and a more responsive ride across any terrain.
