Kawasaki Teryx KRX KRX4 Winch Mount

Kawasaki Teryx KRX Winch Mount

Equip your Kawasaki Teryx KRX with a heavy-duty winch mount engineered for strength, precision, and reliability. Made in the USA from 3/16″ steel, this winch mount provides a perfect fit for a wide range of standard 2-hole and 4-hole winches and ensures your recovery system is built to last.

!! NOTICE !!

• KRX 4 models require Wire Extension Kit due to battery location.
• If you have a 2-Hole winch, you will need to purchase 2-Hole Mounted Winch 90 Degree Converter Part #100480.

Compatible Winches

This mount works with most winches that use standard 3.00″ × 4.875″ or 3.00″ × 6.60″ bolt patterns, including popular models from KFI, WARN, Superwinch, Badland, Champion, Smittybilt, Ramsey, Mile Marker, and others.

• KFI: ST17, A2000, A2500-R2, A3000, U45-R2, U45w-R2, SE25, SE35, SE45-R2, SE45w-R2, AM-25, AM-35, AS-25, AS-35, AS-50x, AS-50wx
• WARN: VRX 25/25-S, 35/35-S, 45/45-S, A2000, A2500, U2500, RT/XT Series, Vantage & ProVantage Series (2000–4500 lb)
• Superwinch: Terra 25–45, LT Series, UT Series, A3500
• Mile Marker: PE & VMX Series (2000–3500 lb)
• Badland: 2-Hole, Standard, Wide Winches and Apex 5500 (Short Drum)
• Champion: 2-Hole and 4-Hole ATV/UTV Winches
• Smittybilt: XRC 2.0 (Requires #100480) and XRC 3.0 / 4.0
• Ramsey, QuadBoss, Keeper Trakker, Venom, and others using the standard mounting patterns below:

Standard Bolt Patterns

• 4-Hole: 3.00″ × 4.875″ bolt pattern (standard rollers)
• 4-Hole WIDE: 3.00″ × 6.60″ bolt pattern (wide rollers 6.00″–6.60″)
• 2-Hole: 3.10″ bolt pattern (requires Part #100480)

Construction & Quality

• Made in the USA with 100% American steel.
• Mount plate constructed from 3/16″ steel for maximum strength.
• Fairlead bracket made from 10-gauge steel.
• Metal bead-blasted before powder coating for a superior finish.
• Durable black powder-coat finish for long-term corrosion resistance.
• Quick and easy installation with complete hardware and instructions included.
• Roller fairlead and winch sold separately.

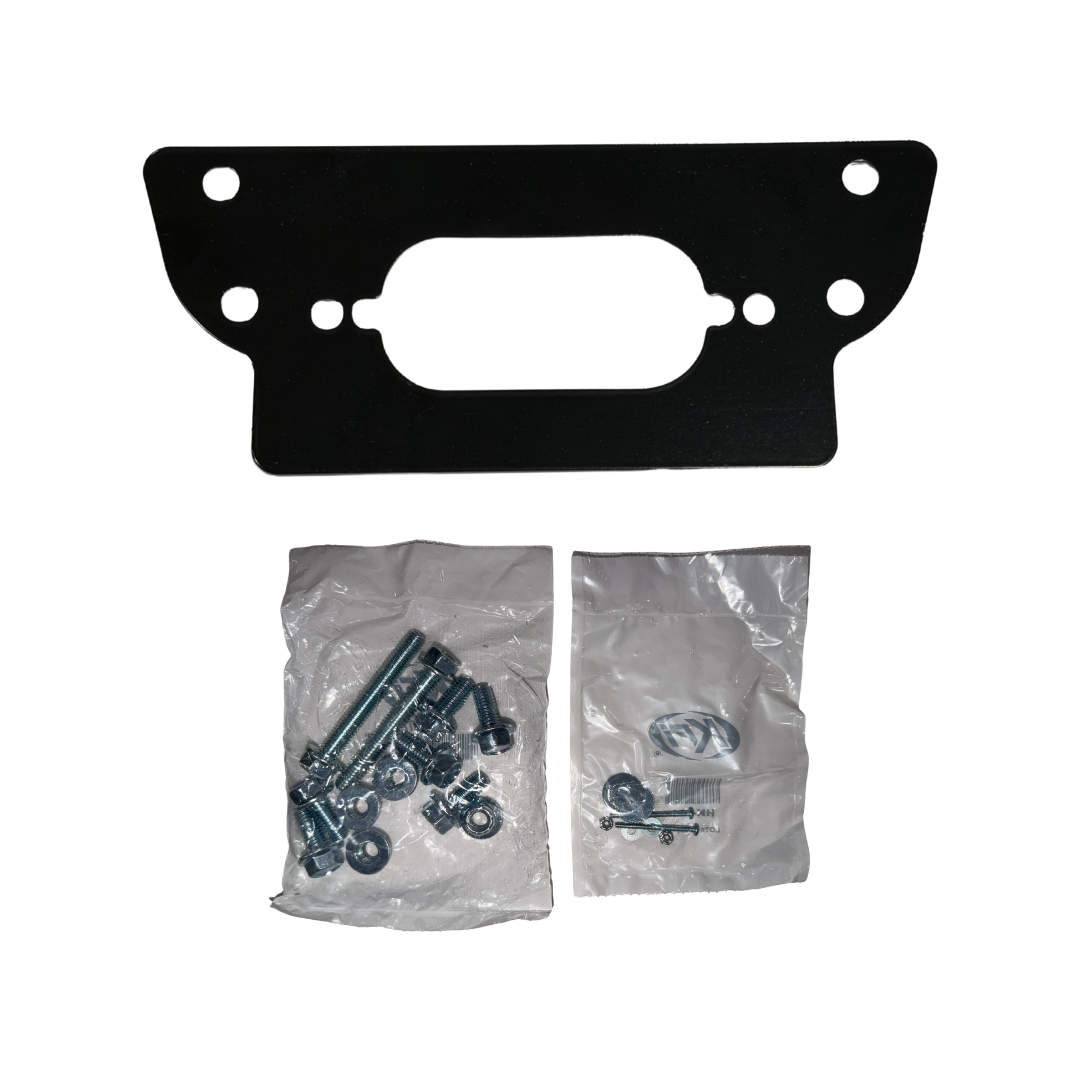

Includes

• Winch mount plate
• Fairlead bracket
• All mounting hardware and instructions

Fitment Notes

• Vehicle: Kawasaki Teryx KRX (2 and 4-seat models)
• KRX 4 Notice: Wire Extension Kit #UTV-WEK required due to battery placement.
• 2-Hole Winches: Require adapter bracket.
• Fairlead Compatibility: Requires roller fairlead with 4.875″ bolt pattern (#ATV-RF available).

Get ready for any recovery situation with the Kawasaki Teryx KRX Winch Mount — rugged, reliable, and 100% made in the USA for riders who demand the best.
